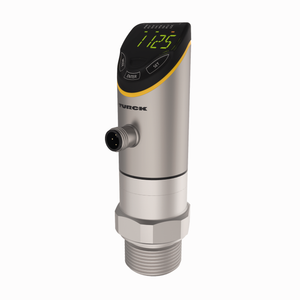

Turck LRS510-10-51-LI2UPN8-H1141 Radar Level Measurement Sensor with 0.350-10m Range and Versatile Output Options
Turck
$1,405.80
Manufacturer's Part Number: 100012729
The Turck LRS510-10-51-LI2UPN8-H1141 Radar Level Measurement Sensor is designed for precise and reliable level measurement in various industrial applications. It features a measuring range of 0.350 to 10 meters, making it suitable for a wide array of environments. The sensor is equipped with a G 3/4" process connection, ensuring easy integration into existing systems. It offers versatile output options, including 1 NPN/PNP switching output, 1 analog output, and 1 IO-Link output, or alternatively, 2 NPN/PNP switching outputs and 1 IO-Link output. This flexibility allows for seamless communication and control within your automation setup, enhancing operational efficiency and accuracy.
Product Features
Range: 10 m, Blind zone: 35 cm, Resolution: 1 mm, Cone angle of the radar beam: ±5°, Distance, level, volume or % output, Approved according to ETSI 305550-2, Approved according to FCC/CFR. 47 Part 15., Male connector, M12 × 1, 4-pin, Operating voltage 18 33 VDC, Switching output switchable between PNP/NPN, Analog output switchable between 4 20 mA/0 10 V, Automatic current/voltage detection, IO-Link, 4-digit, 2-colored, 14-segment display, Housing is rotatable by 180° after mounting the process connection, Process connection G3/4, Pressure resistance -1 16 bar rel., "
Product Features
Range: 10 m, Blind zone: 35 cm, Resolution: 1 mm, Cone angle of the radar beam: ±5°, Distance, level, volume or % output, Approved according to ETSI 305550-2, Approved according to FCC/CFR. 47 Part 15., Male connector, M12 × 1, 4-pin, Operating voltage 18 33 VDC, Switching output switchable between PNP/NPN, Analog output switchable between 4 20 mA/0 10 V, Automatic current/voltage detection, IO-Link, 4-digit, 2-colored, 14-segment display, Housing is rotatable by 180° after mounting the process connection, Process connection G3/4, Pressure resistance -1 16 bar rel., "
