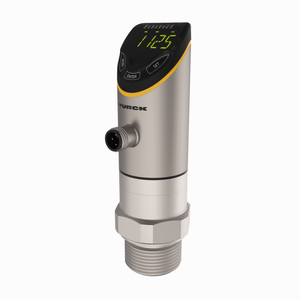

Turck LRS510-10-57-2UPN8-H1141 Radar Level Measurement Sensor with 0.350-10m Range and Versatile Connectivity Options
Turck
$1,345.00
Manufacturer's Part Number: 100012726
The Turck LRS510-10-57-2UPN8-H1141 Radar Level Measurement Sensor is designed for precise and reliable level measurement in various industrial applications. With a measuring range of 0.350 to 10 meters, this sensor ensures accurate readings for both short and long distances. It features a 1" NPT process connection, making it easy to integrate into existing systems. The sensor is equipped with two NPN/PNP switching outputs and one IO-Link output, providing versatile connectivity options for seamless integration with your control systems. Ideal for use in challenging environments, this radar level sensor offers robust performance and durability.
Product Features
Range: 10 m, Blind zone: 35 cm, Resolution: 1 mm, Cone angle of the radar beam: ±3°, Distance, level, volume or % output, Approved according to ETSI 305550-2, Approved according to FCC/CFR. 47 Part 15., Male connector, M12 × 1, 4-pin, Operating voltage 18 33 VDC, Switching output switchable between PNP/NPN, IO-Link, 4-digit, 2-colored, 14-segment display, Housing is rotatable by 180° after mounting the process connection, Process connection NPT 1, Pressure resistance -1 16 bar rel., "
Product Features
Range: 10 m, Blind zone: 35 cm, Resolution: 1 mm, Cone angle of the radar beam: ±3°, Distance, level, volume or % output, Approved according to ETSI 305550-2, Approved according to FCC/CFR. 47 Part 15., Male connector, M12 × 1, 4-pin, Operating voltage 18 33 VDC, Switching output switchable between PNP/NPN, IO-Link, 4-digit, 2-colored, 14-segment display, Housing is rotatable by 180° after mounting the process connection, Process connection NPT 1, Pressure resistance -1 16 bar rel., "
