Manufacturer's Part Number: 200010904

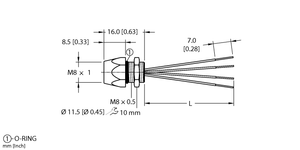

Actuator and Sensor Receptacle. Front Mount. Ident. no.: 200010904. M8, Female, 3-pin. Mounting thread: M8 × 0.5
- Application:
- Signal
- Connector A:
- Female, M8 ?ù 1
- Number of contacts:
- 3
- Mounting orientation:
- Front mount
- Mounting thread:
- M8 ?ù 0.5
- Voltage:
- 125 V
- Current:
- 4 A
- Length (L):
- 0.70, 0.7 m
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
