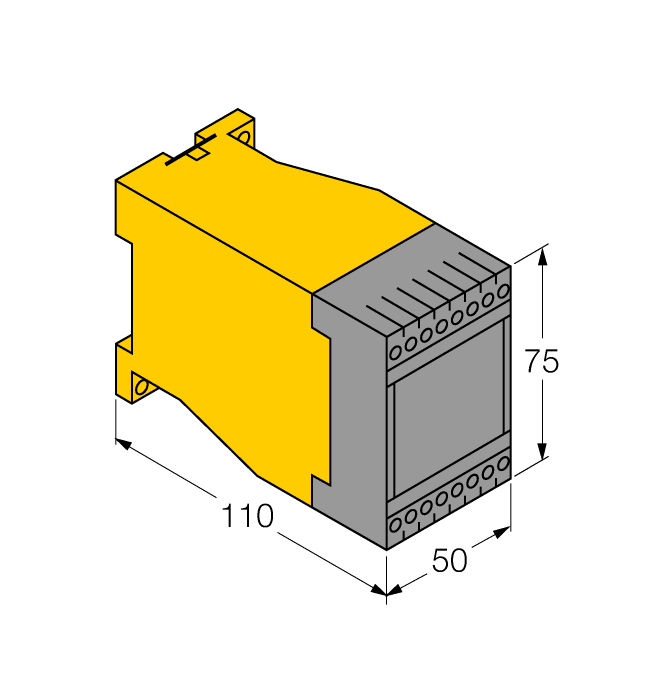

Turck Ms96-12R/115Vac Flow 5231002
Turck
$581.30
Manufacturer's Part Number: 5231002
Processor Unit. For the Connection of FCS Product Series Non-Ex Flow Sensors. Ident. no.: 5231002. For connection of a standard flow sensor. Adjustment via potentiometer. 6 LEDs for display of the flow state. Temperature monitoring adjustable -20
+100 °C . Switch-off delay adjustable 0
25 s. Wire-break monitoring. 92
127 VAC. 2 changeover contacts, relay outputs for flow and temperature
- Design:
- Signal processor
- Operating voltage:
- 92?à127 VAC
- Output function:
- Complementary contact, Relay output
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, Polycarbonate/ABS
- Ambient temperature:
- -20?à+60 ??C
- Protection class:
- IP20
- Quick Start Guide:
- View
- Flyer:
- View
- Datasheet:
- View
