Turck Nct3-M08-Iol-V1131 Capacitive 100027491
Turck
$290.00
Manufacturer's Part Number: 100027491

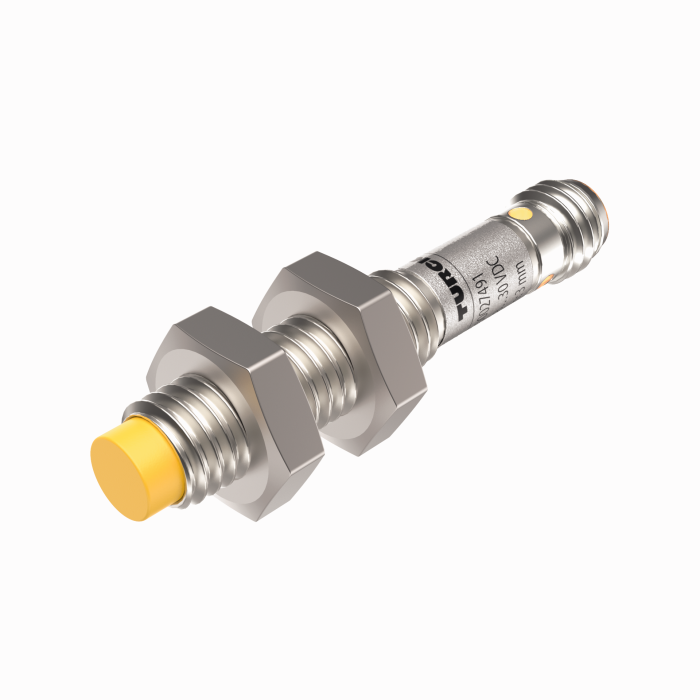

Capacitive Sensor. Ident. no.: 100027491. Detection of metallic and non-metallic objects. Detection of liquids, powders and solid materials. All functions can be parameterized via IO-Link. Three different types of object teaching (one value, two value, dynamic) possible. Available counting function whose content can be called up via IO-Link. Switching status indicated by four LEDs arranged all around the device. Male connector, M8 × 1, 3-pin. Robust, compact housing made of nickel-plated brass. M8 threaded design, non-flush, switching distance = 3 mm
- Function:
- Level detection
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 3 mm
- Operating voltage:
- 18?à30 VDC
- Output function:
- NO/NC programmable, PNP/NPN
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Metal, Nickel-Plated Brass
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
