Turck Ni10-Em18Wdtc-Y1X Inductive 4012151
Turck
$262.90
Manufacturer's Part Number: 4012151

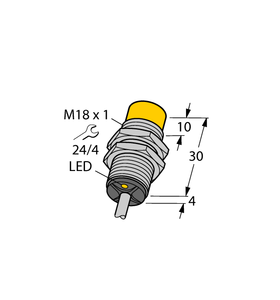

Inductive Sensor. With Increased Temperature Range. Ident. no.: 4012151. Threaded barrel, M18 x 1. Stainless steel, 1.4404. For temperatures of -40 °C
+100 °C. High protection class IP69K for harsh environments. Special double-lip seal. Protection against all common acidic and alkaline cleaning agents. Suitable for applications in the food industry. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). Terminal chamber. ATEX category II 1 G, Ex Zone 0 at temperatures up to +80 °C. ATEX category II 2 G. Ex Zone 1. ATEX category II 1 D, Ex Zone 20 for temperatures from -25 °C to +70 °C. SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0. SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HTF1
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 10 mm
- Mounting:
- Non-flush
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Terminal chamber, Removable cage clamp terminals
- Housing material:
- Stainless steel, 1.4404 (AISI 316L)
- Ambient temperature:
- -40?à+100 ??C
- Protection class:
- IP68/IP69K
- Approvals:
- ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
- Special features:
- Wash down, Pressure resistant
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
