Manufacturer's Part Number: 4642700

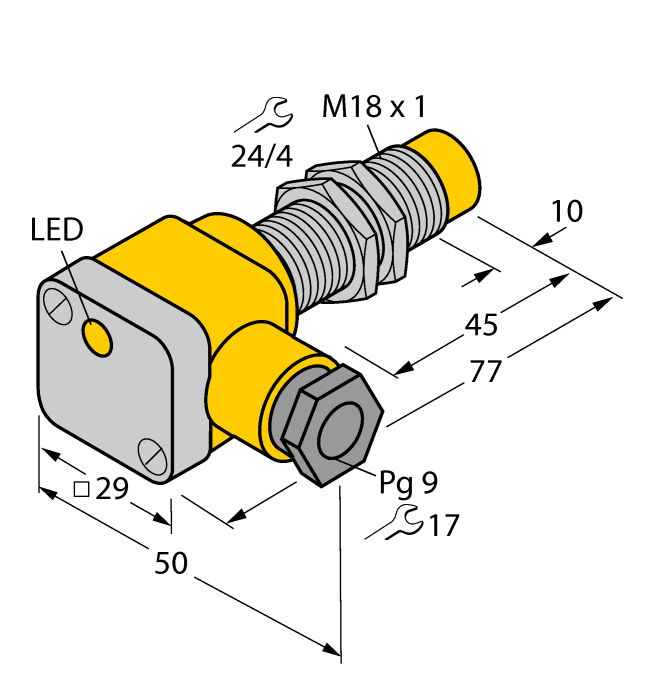

Inductive Sensor. Ident. no.: 4642700. M18 1 threaded barrel. Chrome-plated brass. DC 3-wire, 1030 VDC. NO contact, NPN output. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 10 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
