Turck Ni12U-Em18-An6X-H1141/S395 Inductive 1645351
Turck
$153.10
Manufacturer's Part Number: 1645351

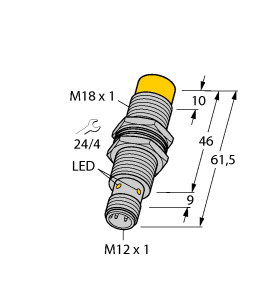

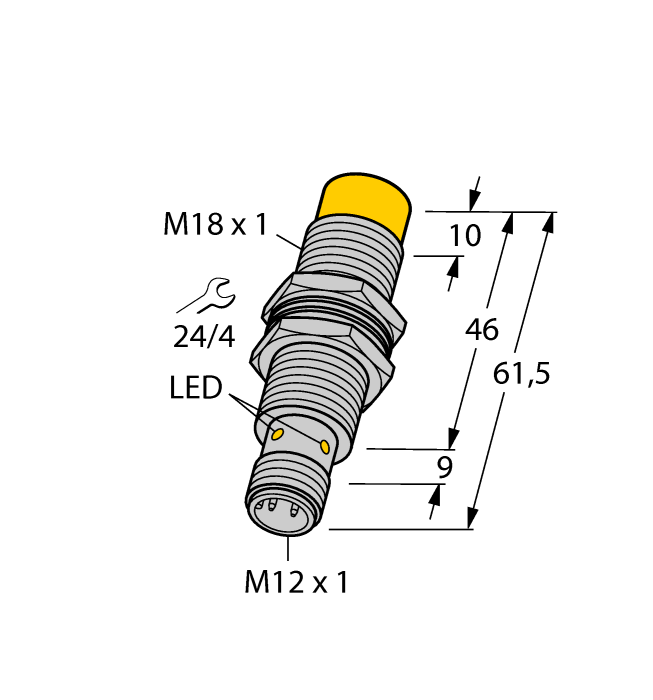

Inductive Sensor. Ident. no.: 1645351. Threaded barrel, M18 x 1. Stainless steel, 1.4301. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, NPN output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 12 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless steel, 1.4301 (AISI 304)
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
