Turck

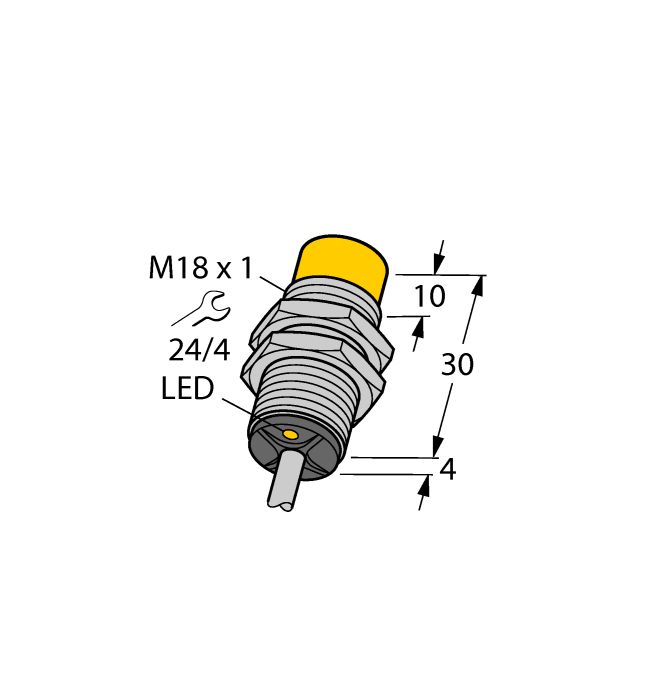

Turck Ni14-G18-Y1X Inductive 4015401

(No reviews yet) Write a Review
SKU:
NI14-G18-Y1X
MPN:
4015401
Condition:
New
Design:
Threaded barrel
Construction size:
M18 x 1
Rated switching distance:
14 mm
Mounting:
Non-flush
Operating voltage:
Nom. 8.2 VDC
Output function:
NAMUR
Switching frequency:
0.50 kHz
Electrical connection:
Cable
Cable length (L):
2.0 m
Housing material:
Metal, CuZn, Chrome-plated
Ambient temperature:
-25…+70 °C
Protection class:
IP67
Approvals:
ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Manual:
View
Catalog:
View
Datasheet:
View
  • Turck Ni14-G18-Y1X Inductive 4015401
  • Turck Ni14-G18-Y1X Inductive Sensor, Standard, KEMA 02 ATEX 1090X
$128.10

Description

Inductive Sensor. Ident. no.: 4015401. Threaded barrel, M18 x 1. Chrome-plated brass. DC 2-wire, nom. 8.2 VDC. Output acc. to DIN EN 60947-5-6 (NAMUR). Cable connection. ATEX category II 1 G, Ex zone 0. ATEX category II 1 D, Ex zone 20. SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0. SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
