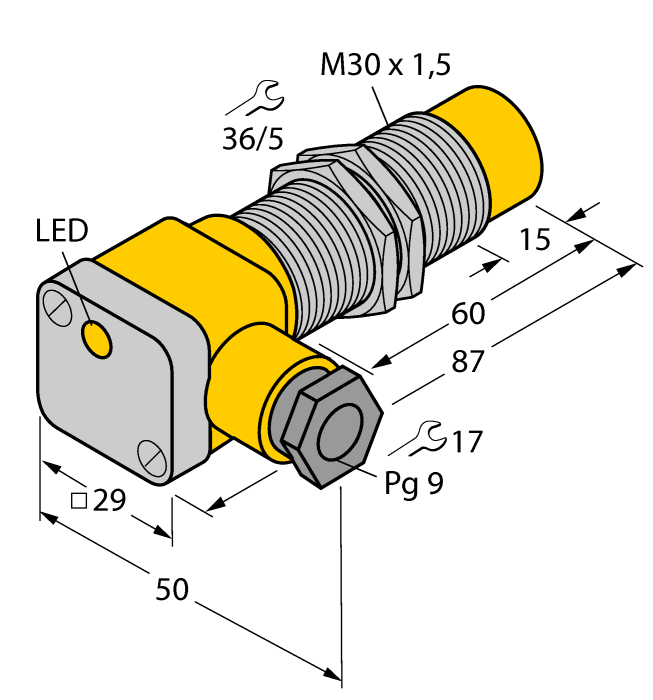

Turck Ni15-G30Sk-Az3X2 Inductive 4346500
Turck
$213.00
Manufacturer's Part Number: 4346500
Inductive Sensor. Ident. no.: 4346500. Threaded barrel, M30 x 1.5. Short version. Chrome-plated brass. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
