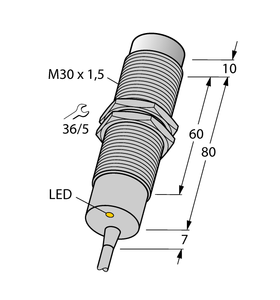

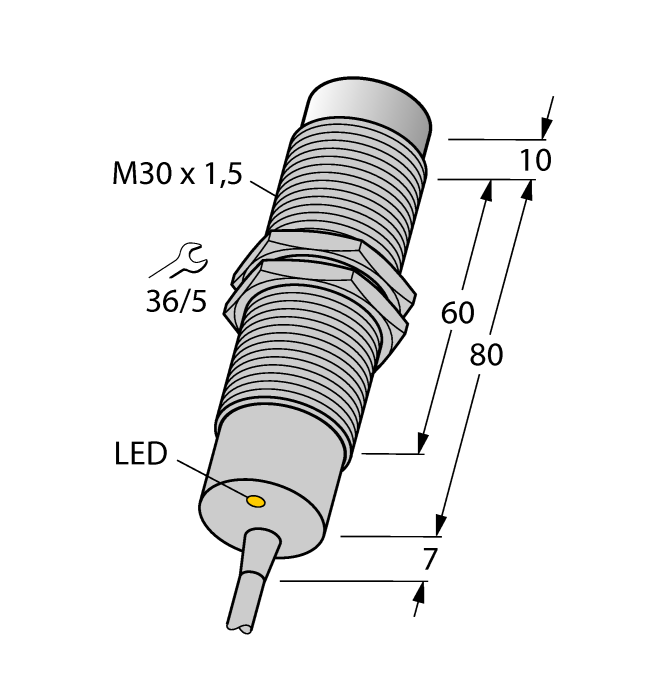

Turck Ni15-M30-Ap6X/S120 7M Inductive 4617214
Turck
$358.90
Manufacturer's Part Number: 4617214
Inductive Sensor. With Increased Temperature Range. Ident. no.: 4617214. M30 Ã 1.5 threaded tube. Chrome-plated brass. S120 = Temperatures up to +120 °C. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 7.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+120 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
