Turck Ni15-S30-Ap7X/S100 Inductive 1768501
Turck
$272.20
Manufacturer's Part Number: 1768501

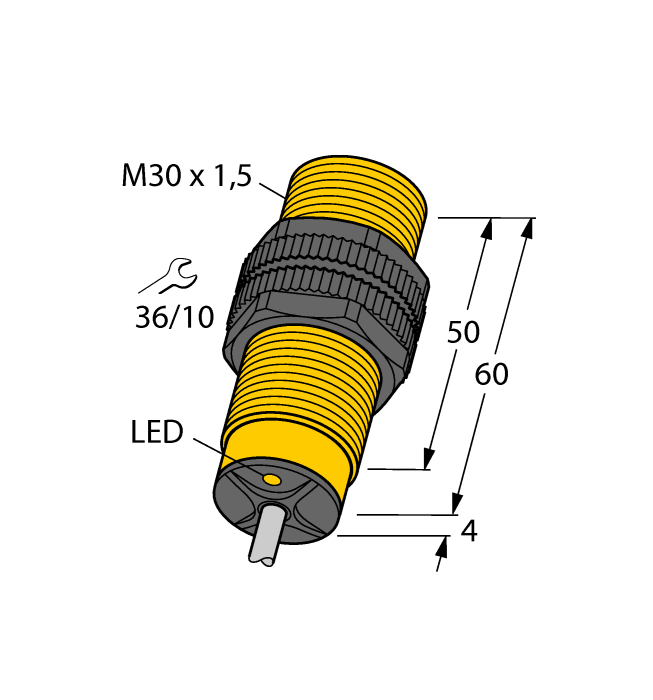

Inductive Sensor. With Increased Temperature Range. Ident. no.: 1768501. Threaded barrel, M30 x 1.5. Plastic, PA12 GF30. Temperatures up to +100 °C. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+100 ??C
- Protection class:
- IP67
