Turck Ni15U-M18M-Vp6X Inductive 100000628
Turck
$161.00
Manufacturer's Part Number: 100000628

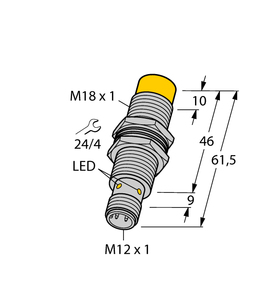

Inductive Sensor. With Extended Switching Distance. Ident. no.: 100000628. Threaded barrel, M18 x 1. Chrome-plated brass. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large switching distance. Integrated protection against predamping. Little metal-free spaces. DC 4-wire, 10
30 VDC. Changeover contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 30 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
