Turck Ni2-Isi-0.055-Bds-2Ap6X3-H1141/S34Wisi1 1650132
Turck
$443.50
Manufacturer's Part Number: 1650132

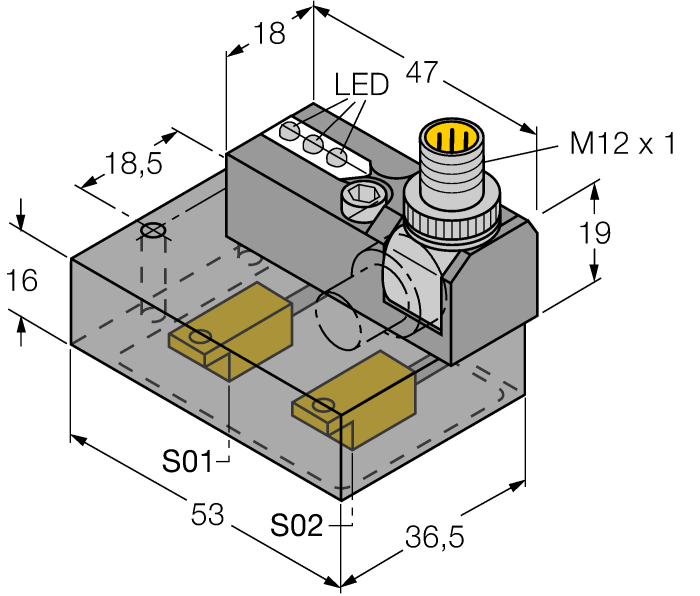

Inductive Sensor. Monitoring Kit for Power Clamps. Ident. no.: 1650132. BDS power block with two connected sensors and LEDs. Robust rotatable connector 0°, 45° and 90°, for optimal cable routing. Plastic, PBT GF20 V0. Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT. 2 x NO contact, PNP output. DC 4-wire, 10
30 VDC
- Design:
- Monitoring kit for power clamps
- Rated switching distance:
- 2 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.030 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Cable length (L):
- 0.0550 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
