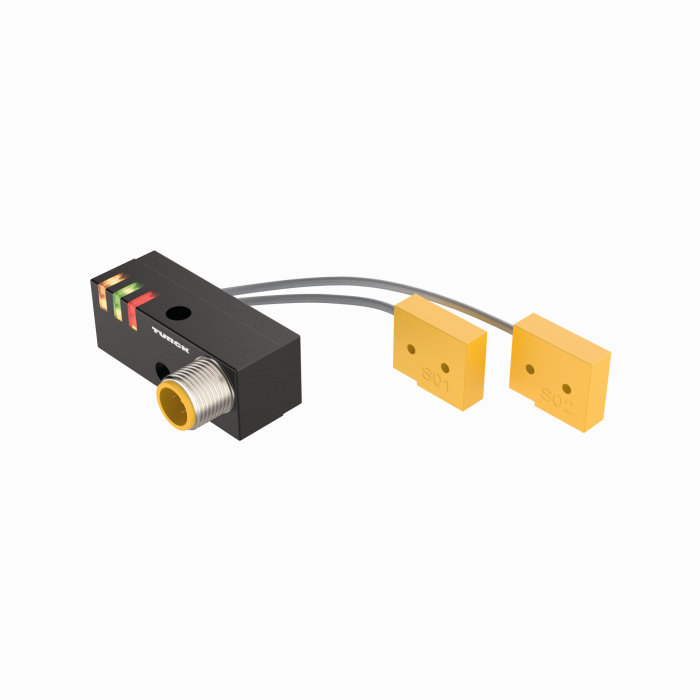

Turck Ni2-Q6.5-Ap6-0.13-Fs4.4X3/S304 Inductive 1650054

(No reviews yet) Write a Review
SKU:
NI2-Q6.5-AP6-0.13-FS4.4X3/S304
Condition:
New
EAN:
4047101081787
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365019900
Country of origin:
CN
Weight:
40 g
Design:
Monitoring kit for power clamps
Rated switching distance:
2 mm
Mounting:
Non-flush
Operating voltage:
10…30 VDC
Output function:
NO contact, PNP
Switching frequency:
0.030 kHz
Electrical connection:
Connector, M12 × 1
Cable length (L):
0.130 m
Housing material:
Metal, PBT-GF20-V0
Ambient temperature:
-25…+70 °C
Protection class:
IP67
Special features:
Resistant to magnetic fields
  • Turck Ni2-Q6.5-Ap6-0.13-Fs4.4X3/S304 Inductive Sensor, Monitoring Kit for Power Clamps, Standard
  • Turck Ni2-Q6.5-Ap6-0.13-Fs4.4X3/S304 Inductive Sensor, Monitoring Kit for Power Clamps, Standard
$224.70

Description

Inductive Sensor, Monitoring Kit for Power Clamps, Q6,5 power block with two connected sensors and LEDs, Relocatable block 0°90°, with cross drilling for flexible cable routing, Plastic, PBTGF20V0, 2 x NO contact, PNP output, DC 4-wire, 1030 VDC, Cable length (L) 0.13ÿm, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, Rated switching distance: 2 mm, Non-flush
