Turck Ni2-Q9.5-Ap6-0.2-Fs4.4X3/S304 Inductive 1650062
Turck
$267.40
Manufacturer's Part Number: 1650062

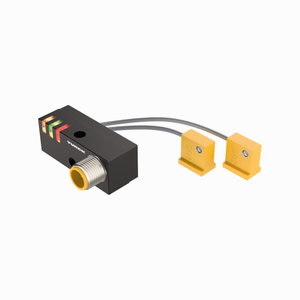

Inductive Sensor. Monitoring Kit for Power Clamps. Ident. no.: 1650062. Q9,5 power block with two connected sensors and LEDs. Relocatable block 0°
90°, with cross drilling for flexible cable routing. Plastic, PP GR-20. Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT. 2 x NO contact, PNP output. DC 4-wire, 10
30 VDC
- Design:
- Monitoring kit for power clamps
- Rated switching distance:
- 2 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.030 kHz
- Electrical connection:
- Connector, M12 × 1
- Cable length (L):
- 0.20 m
- Housing material:
- Plastic, PBT-GF20-V0
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Special features:
- Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
