Turck Ni20U-S30-An6X Inductive 1646520
Turck
$162.30
Manufacturer's Part Number: 1646520

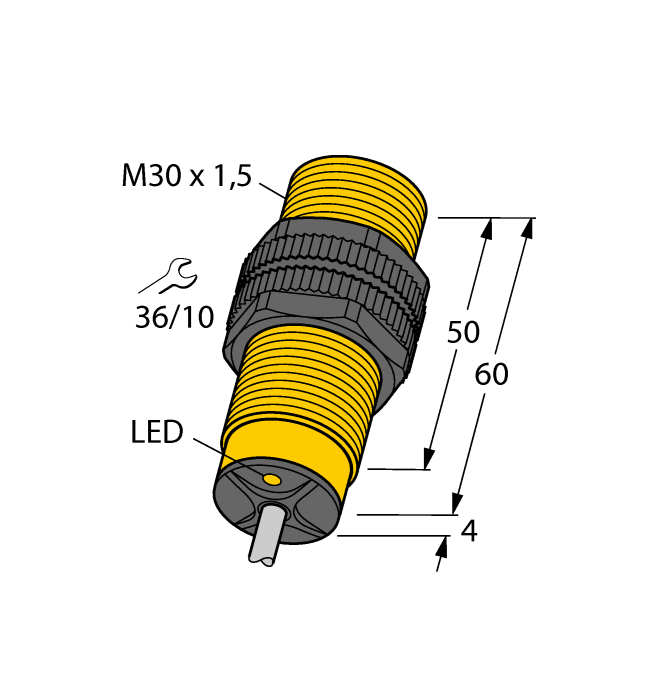

Inductive Sensor. Ident. no.: 1646520. Threaded barrel, M30 x 1.5. Plastic, PA12 GF30. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. Auto-compensation protects against pre-damping. DC 3-wire, 10
30 VDC. NO contact, NPN output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 20 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
