Turck Ni22U-Q40-Ap6X2-H1141 Inductive 4690229
Turck
$203.40
Manufacturer's Part Number: 4690229
Inductive Sensor. For Parts Position Control in Die Press Tools. Ident. no.: 4690229. Rectangular, height 38 mm. Active face on top. Plastic, PBT GF30 V0. Factor 1 for all metals. Resistant to magnetic fields. Extended temperature range. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Rectangular
- Construction size:

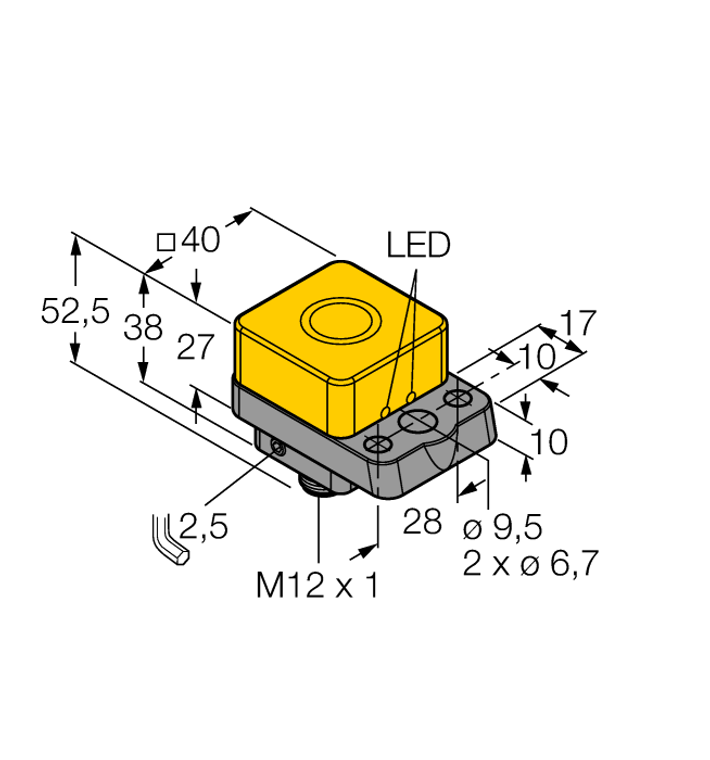

- 67 x 40 x 52.5 mm, Q40
- Rated switching distance:
- 22 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- 0?à+70 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
