Manufacturer's Part Number: 4602931

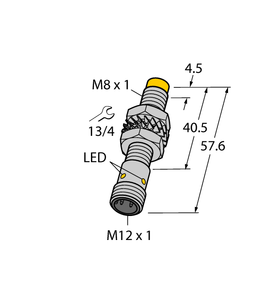

Inductive Sensor. Ident. no.: 4602931. Threaded barrel, M8 x 1. Nickel-plated brass. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 3 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.80 kHz
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Metal, CuZn, Nickel Plated
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
