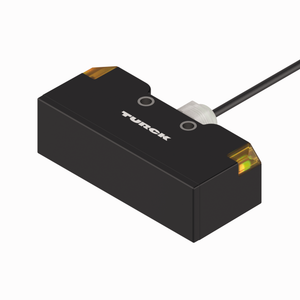

Turck Ni30-Q130Wd-Adz30X2-B1131 Inductive 100003890
Turck
$734.90
Manufacturer's Part Number: 100003890
Inductive Sensor. For harsh environments. Ident. no.: 100003890. Rectangular, height 40 mm. Active surface over the entire front. Plastic, PPS-GF30. High protection class IP69K for harsh environments. Protection against all common acidic and alkaline cleaning agents. Laser engraved label, permanently legible. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 7/8" male connector
- Design:
- Rectangular
- Construction size:
- 130 x 57 x 40 mm, Q130
- Rated switching distance:
- 30 mm
- Mounting:
- Non-flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Plastic, PPS-GF30, Black
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68/IP69K
- Special features:
- Wash down
