Turck

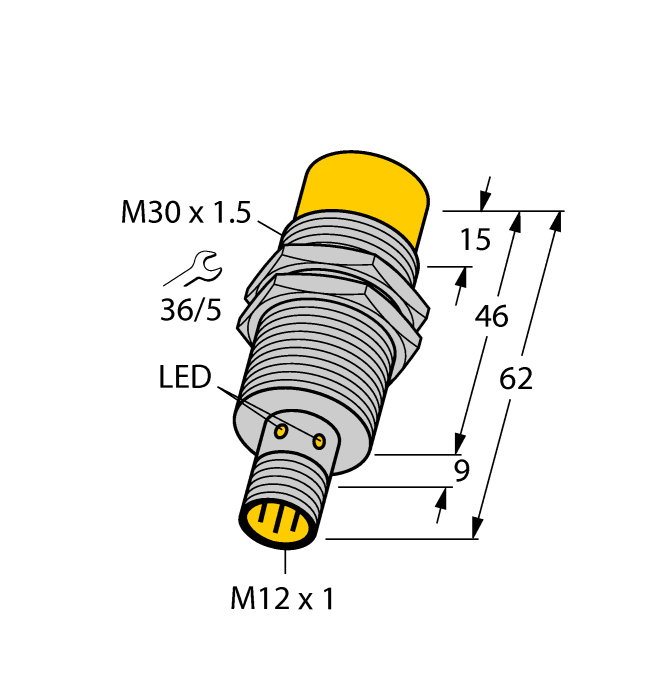

Turck Ni30U-Em30-Ap6X-H1141 Inductive 1646632

(No reviews yet) Write a Review
SKU:
NI30U-EM30-AP6X-H1141
MPN:
1646632
Condition:
New
Design:
Threaded barrel
Construction size:
M30 x 1.5
Rated switching distance:
30 mm
Mounting:
Non-flush
Operating voltage:
10…30 VDC
Output function:
NO contact, PNP
Switching frequency:
1.0 kHz
Electrical connection:
Connector, M12 × 1
Housing material:
Stainless steel, 1.4301 (AISI 304)
Ambient temperature:
-30…+85 °C
Protection class:
IP68
Special features:
uprox+, Factor 1, Resistant to magnetic fields
Catalog:
View
Datasheet:
View
  • Turck Ni30U-Em30-Ap6X-H1141 Inductive 1646632
  • Turck Ni30U-Em30-Ap6X-H1141 Inductive Sensor, uprox+
$128.90

Description

Inductive Sensor. With Extended Switching Distance. Ident. no.: 1646632. M30 1.5 threaded tube. Stainless steel, 1.4301. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large switching distance. Integrated protection against predamping. Little metal-free spaces. DC 3-wire, 1030 VDC. NO contact, PNP output. M12 x 1 male connector
