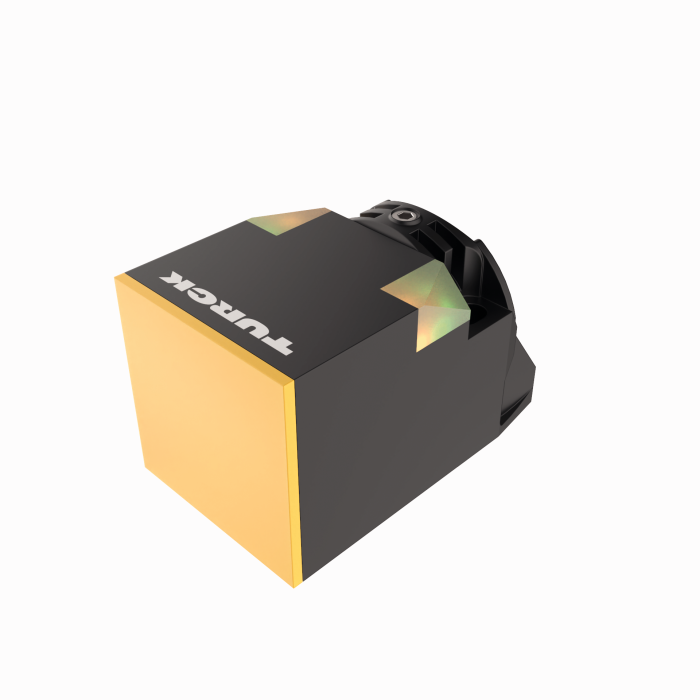

Turck Ni35U-Ck40-Ad4X-H1144 Inductive 4280232
Turck
$219.50
Manufacturer's Part Number: 4280232
Inductive Sensor. Ident. no.: 4280232. Rectangular, height 40 mm. Variable orientation of active face in 5 directions. Plastic, PBT GF30 V0. High luminance corner LEDs. Optimum view on supply voltage and switching state from any position. Factor 1 for all metals. Resistant to magnetic fields. DC 2-wire, 10
65 VDC. NO contact. M12 x 1 male connector
- Design:
- Rectangular
- Construction size:
- 65 x 40 x 40 mm, CK40
- Rated switching distance:
- 35 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PBT-GF20-V0, Black
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Quick Start Guide:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
