Turck

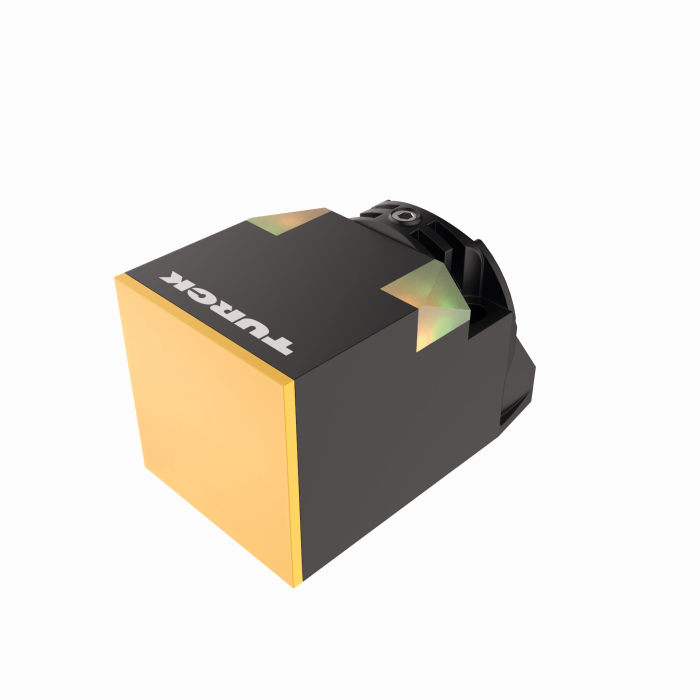

Turck Ni35U-Ck40-Adz30X2-B1131/S1590 W/Bs 2.1 4280493

(No reviews yet) Write a Review
SKU:
NI35U-CK40-ADZ30X2-B1131/S1590 W/BS 2.1
Condition:
New
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Design:
Rectangular
Construction size:
65 x 40 x 40 mm, CK40
Rated switching distance:
35 mm
Mounting:
Non-flush
Operating voltage:
20…250 VAC / 10…300 VDC
Output function:
NO contact, 2-wire
Switching frequency:
0.010 kHz
Electrical connection:
Connector, 7/8?
Housing material:
Plastic, PBT-GF20-V0, Black
Ambient temperature:
-30…+85 °C
Protection class:
IP68
Special features:
uprox+, Sn +, Factor 1
$256.50

Description

Inductive Sensor, With Increased Switching Distance, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBTGF30V0, AC 2-wire, 20250 VDC, DC 2-wire, 10300 VDC, NO contact, 7/8 male connector, Factor 1 for all metals, Increased switching distance, Protection class IP68, Large coverage, Resistant to magnetic fields, Extended temperature range, High switching frequency, Rated switching distance: 35 mm, Non-flush
