Turck Ni4-Dsu26Tc-2Ap4X2 Inductive 1569905
Turck
$275.90
Manufacturer's Part Number: 1569905
Inductive Sensor. For Rotary Actuators. Ident. no.: 1569905. Rectangular, housing DSU26. Plastic, PP-GF30-VO. Two outputs for monitoring the position of rotary actuators. Mounting on all standard actuators. 2 x NO contact, PNP output. DC 4-wire, 10
65 VDC. Terminal chamber
- Design:
- Dual sensor for valve monitoring
- Construction size:

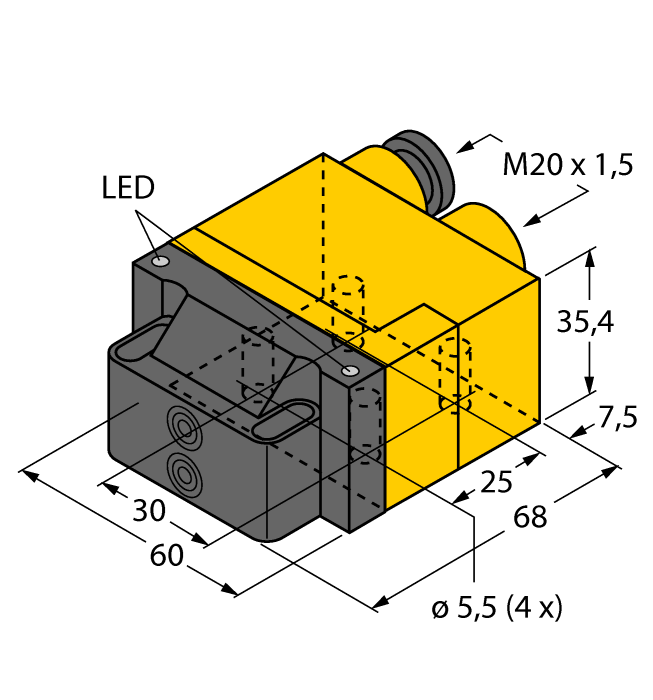

- 68 x 60 x 35.4 mm, DSU26
- Rated switching distance:
- 4 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 65 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.050 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PP-GF30, Yellow
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
