Turck Ni4-Dsu35-2Dnetx5-B1150-Fke4.3 Inductive 1569924
Turck
$432.10
Manufacturer's Part Number: 1569924
Inductive Sensor. For Rotary Actuators. Ident. no.: 1569924. Rectangular, housing DSU35. Plastic, PP-GF30-VO. Two outputs for monitoring the position of rotary actuators. All metal housing parts are made of stainless steel. Direct connection to DeviceNet networks. Valves can be connected. DC 5-wire, 11
25 VDC. 7/8" male connector
- Design:
- Dual sensor for valve monitoring
- Construction size:

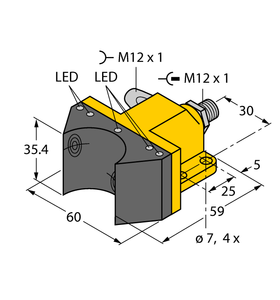

- 59 x 60 x 35.4 mm, DSU35
- Rated switching distance:
- 4 mm
- Mounting:
- Non-flush
- Operating voltage:
- 11 25 VDC
- Output function:
- 2 x NO contact
- Communication protocol:
- DeviceNet
- Switching frequency:
- 0.050 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Plastic, PP-GF30, Yellow
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
