Turck Ni4-Dsu35Tc-2Y1X2 Inductive 1051004
Turck
$213.40
Manufacturer's Part Number: 1051004
Inductive Sensor. For Rotary Actuators. Ident. no.: 1051004. Rectangular, housing DSU35. Plastic, PP-GF30-VO. Two outputs for monitoring the position of rotary actuators. Mounting on all standard actuators. DC 2-wire, nom. 8.2 VDC. 2 × outputs acc. to EN 60947-5-6 (NAMUR). Terminal chamber. ATEX category II 2 G, Ex Zone 1. ATEX category II 1 D, Ex Zone 20. SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0. SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Dual sensor for valve monitoring
- Construction size:

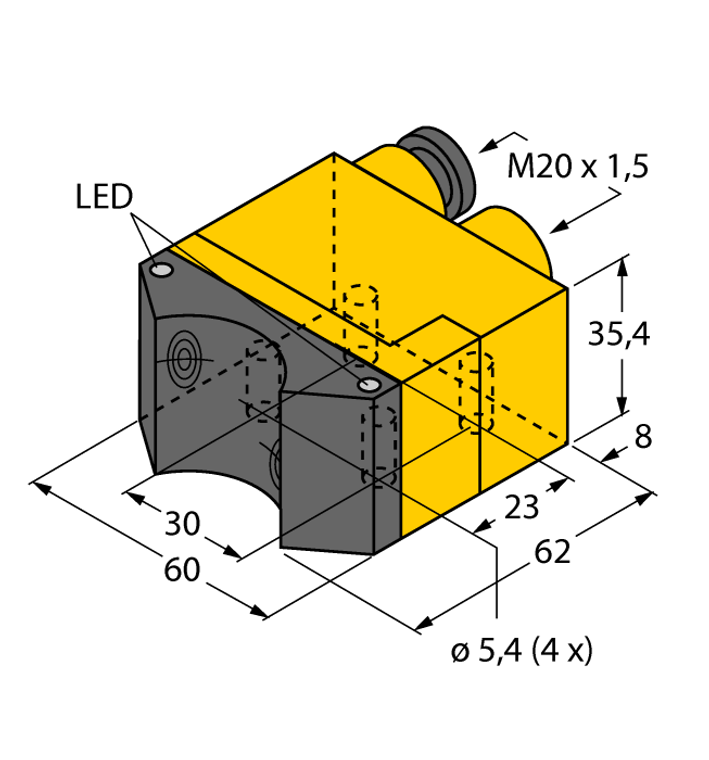

- 62 x 60 x 35.4 mm, DSU35
- Rated switching distance:
- 4 mm
- Mounting:
- Non-flush
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Switching frequency:
- 0.050 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PP-GF30, Yellow
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
