Turck Ni40R-S32Sr-Ap44X-S1131 Inductive 1440006
Turck
$2,392.90
Manufacturer's Part Number: 1440006
Inductive Sensor. Ring Sensor. Ident. no.: 1440006. Rectangular, height 32 mm. Plastic, ABS. Static output behavior. Sensitivity adjusted via potentiometer. Modular design, ring probe and switching amplifier also separately mountable. Output pulse length min. 100 ms. DC 3-wire, 10
55 VDC. NO contact, PNP output. Connector, SOURIAU
- Design:
- Ring sensor

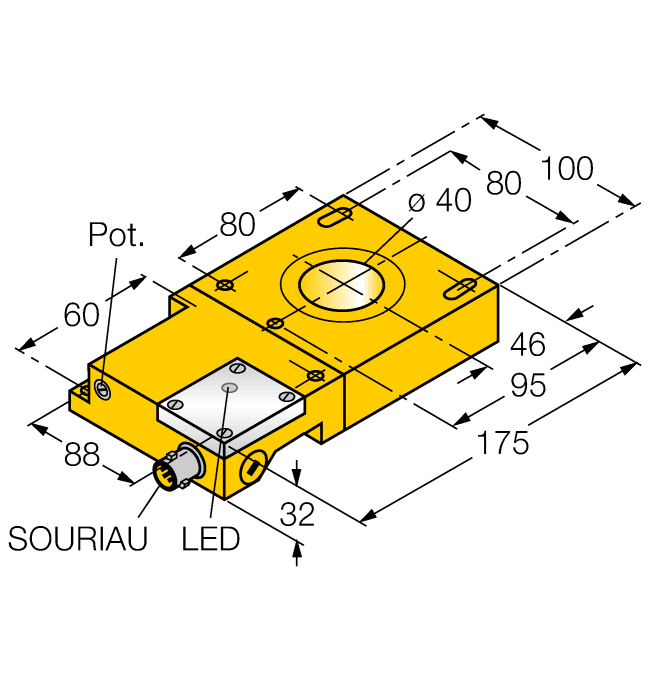

- Construction size:
- 175 x 100 x 32 mm, S32SR
- Inside ring diameter D:
- 40 mm
- Operating voltage:
- 10?à55 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.0080 kHz
- Electrical connection:
- Connector, SOURIAU
- Housing material:
- Plastic, ABS
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP65
- Special features:
- Ring sensor, static output
