Turck Ni40U-Cp40-Fdz30X2-B3131 Inductive 4280891
Manufacturer's Part Number: 4280891
Inductive Sensor. With Extended Switching Distance. Ident. no.: 4280891. Rectangular, height 40 mm. Variable orientation of active face in 9 directions. Plastic, PBT-GF30-VO. High-luminance corner LEDs. Optimum view of operating voltage and switching state from any position. Factor 1 for all metals. Increased switching distance. Protection class IP68. Large coverage. Resistant to magnetic fields. Extended temperature range. High switching frequency. AC 2-wire, 20
250 VDC. DC 2-wire, 10
300 VDC. NC/NO programmable. ½ connector
- Design:
- Rectangular
- Construction size:

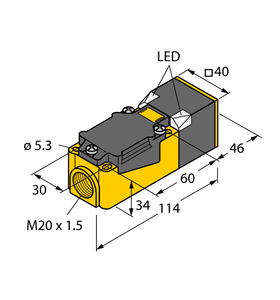

- 114 x 40 x 40 mm, CP40
- Rated switching distance:
- 40 mm
- Mounting:
- Non-flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- Connection programmable, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector, 1/2
- Housing material:
- Plastic, PBT-GF30-V0, Black
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Sn +, Factor 1
