Turck Ni4U-Q8Se-Ap6X-0.3-Rs4T Inductive 4635891
Turck
$141.30
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Ni4U-Q8Se-Ap6X-0.3-Rs4T Inductive 4635891
Manufacturer's Part Number: 4635891
Inductive Sensor. With Extended Switching Distance. Ident. no.: 4635891. Rectangular, height 8 mm. Active face on top. Plastic, PP. Factor 1 for all metals. Increased switching distance. Protection class IP68. Resistant to magnetic fields. Auto-compensation protects against pre-damping. Flush mounted installation on up to 4 sides. DC 3-wire, 10
30 VDC. NO contact, PNP output. Pigtail with male end M12 x 1
- Design:
- Rectangular
- Construction size:

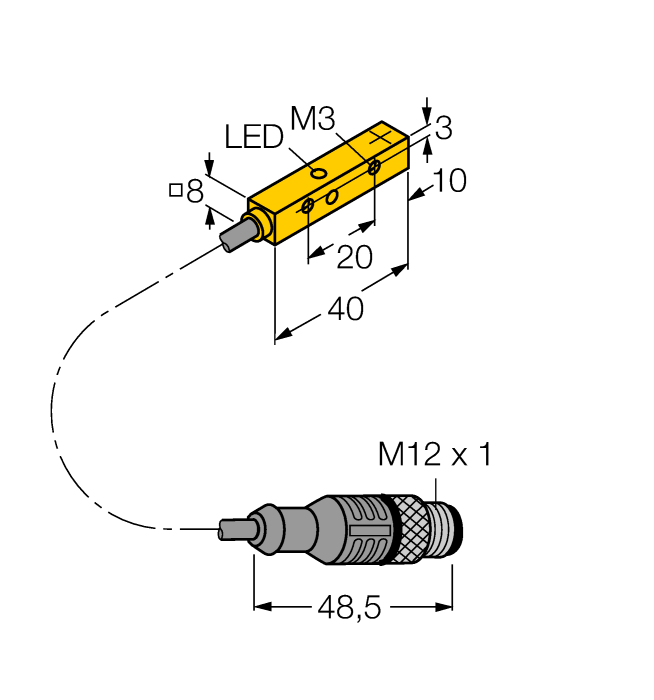

- 40 x 8 x 8 mm, Q8SE
- Rated switching distance:
- 4 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.30 m
- Housing material:
- Plastic, PP, Yellow
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Catalog:
- View
- Datasheet:
- View
