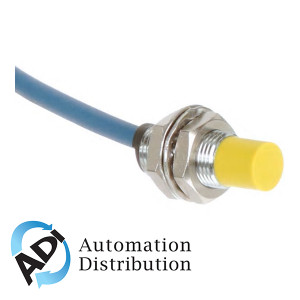

Turck Ni5-G12-Y1X 10M Inductive 4010110
Turck
$134.70
Manufacturer's Part Number: 4010110
Inductive Sensor. Ident. no.: 4010110. Threaded barrel, M12 x 1. Chrome-plated brass. DC 2-wire, nom. 8.2 VDC. Output acc. to DIN EN 60947-5-6 (NAMUR). Cable connection. ATEX category II 1 G, Ex zone 0. ATEX category II 1 D, Ex zone 20. SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0. SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Non-flush
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 10.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
