Turck Ni60-Q80-Y1X-0.2-Rs4.21T Inductive 10087921
Turck
$324.30
Manufacturer's Part Number: 10087921
Inductive Sensor. Ident. no.: 10087921. Rectangular, height 40 mm. Active face on top. Plastic, PBT GF30 V0. DC 2-wire, nom. 8.2 VDC. Output acc. to DIN EN 60947-5-6 (NAMUR). Cable with connector M12 x 1. ATEX category II 2 G, Ex Zone 1. ATEX category II 1 D, Ex Zone 20. SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0. SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Rectangular
- Construction size:

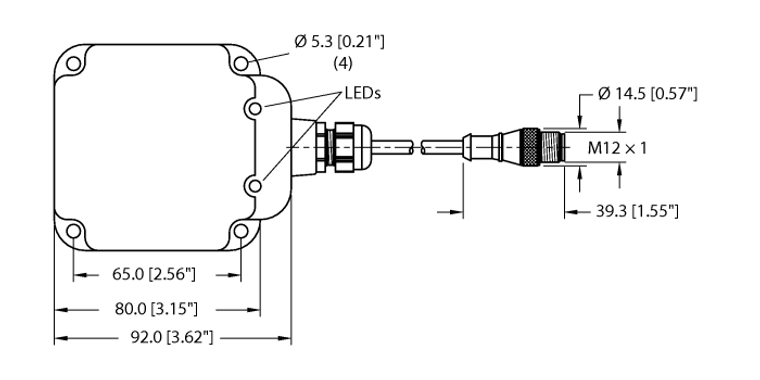

- 92 x 80 x 40 mm, Q80
- Rated switching distance:
- 60 mm
- Mounting:
- Non-flush
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Switching frequency:
- 0.10 kHz
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.20 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
