Turck Ni60R-S32Sr-Vp44X Inductive 1410302
Turck
$1,872.70
Manufacturer's Part Number: 1410302
Inductive Sensor. Ring Sensor. Ident. no.: 1410302. Rectangular, height 32 mm. Plastic, ABS. Static output behavior. Sensitivity adjusted via potentiometer. Modular design, ring probe and switching amplifier also separately mountable. Output pulse length min. 100 ms. DC 4-wire, 10
55 VDC. Changeover contact, PNP output. Terminal chamber
- Design:
- Ring sensor

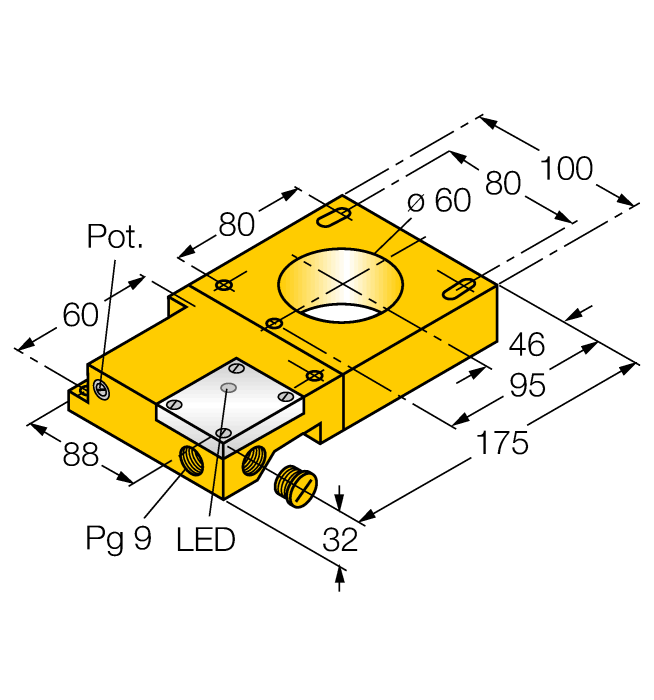

- Construction size:
- 175 x 100 x 32 mm, S32SR
- Inside ring diameter D:
- 60 mm
- Operating voltage:
- 10 55 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 0.0080 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, ABS
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP65
- Special features:
- Ring sensor, static output
