Turck Ni6U-Egt08-Ap6X-H1341 Inductive 4635811
Turck
$170.90
Manufacturer's Part Number: 4635811

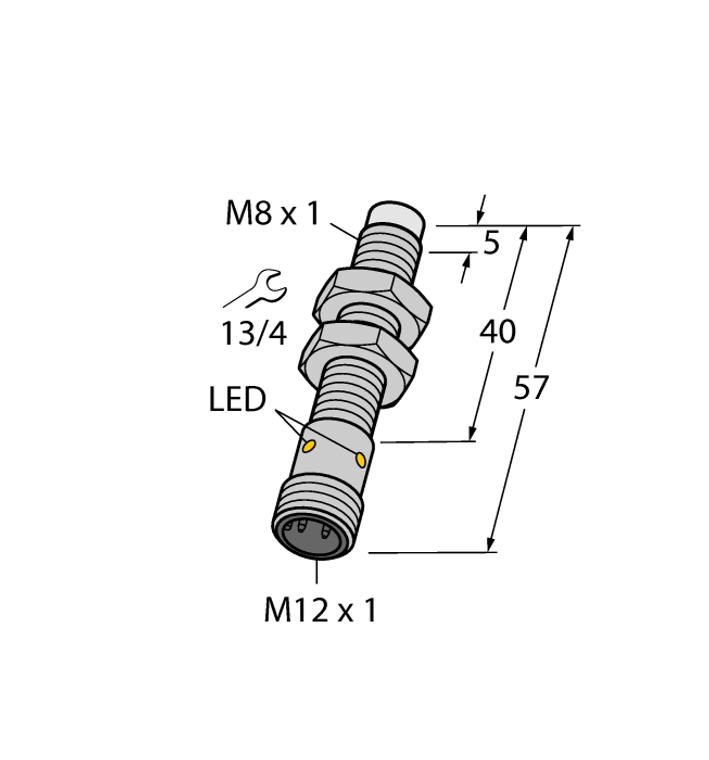

Inductive Sensor. With Extended Switching Distance. Ident. no.: 4635811. Threaded barrel, M8 x 1. Stainless steel, PTFE-coated. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large switching distance. High switching frequency. Integrated protection against predamping. Little metal-free spaces. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 6 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless steel, 1.4427 SO, PTFE-coated
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
- Catalog:
- View
- Datasheet:
- View
