Turck Ni6U-Eh6.5-Ap6X-V1131 Inductive 4631510
Turck
$159.80
Manufacturer's Part Number: 4631510

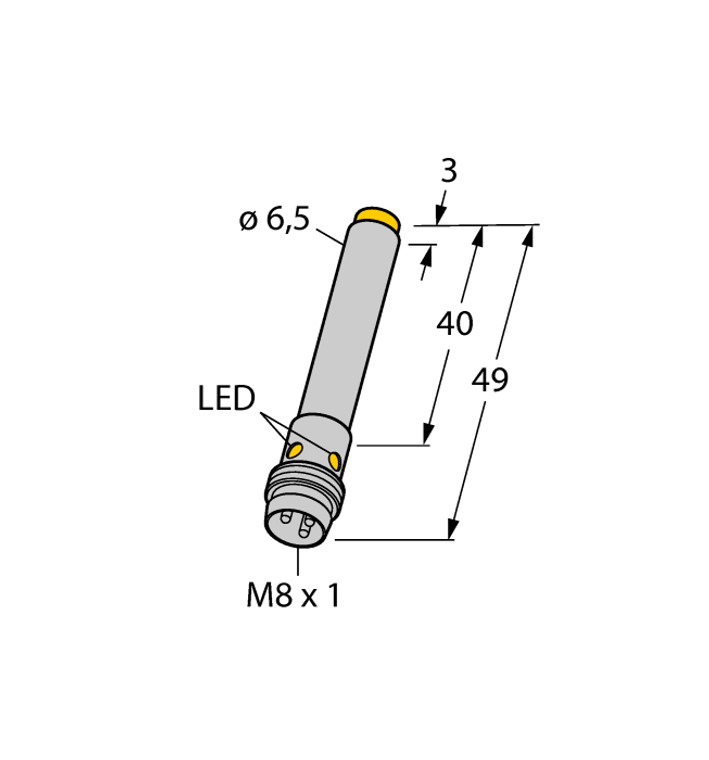

Inductive Sensor. With Extended Switching Distance. Ident. no.: 4631510. Smooth barrel, 6.5 mm. Stainless steel, 1.4427 SO. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large switching distance. High switching frequency. Integrated protection against predamping. Little metal-free spaces. DC 3-wire, 1030 VDC. NO contact, PNP output. M8 x 1 male connector
- Design:
- Smooth barrel
- Construction size:
- ?ÿ 6.5 mm
- Rated switching distance:
- 6 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Stainless steel, 1.4427 SO
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Catalog:
- View
- Datasheet:
- View
