Turck

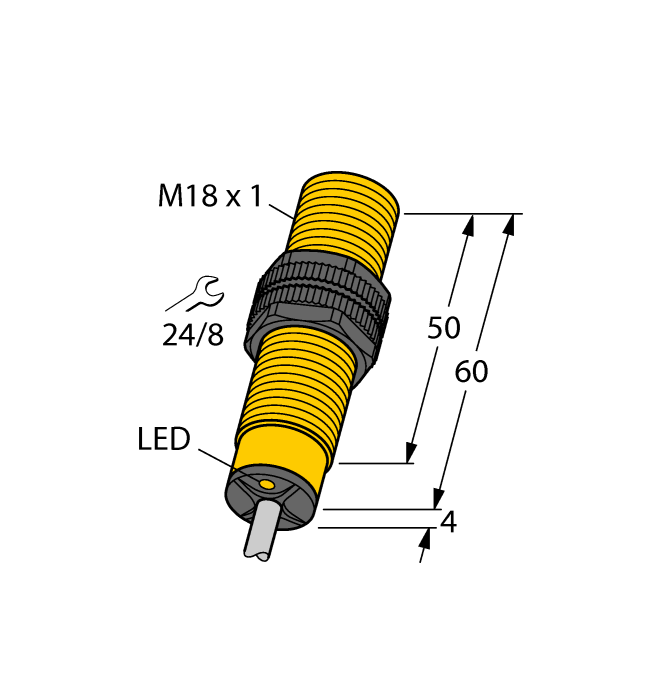

Turck Ni8-S18-Rz3X Inductive 43507

(No reviews yet) Write a Review
SKU:
NI8-S18-RZ3X
Condition:
New
EAN:
4047101095197
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365080900
Country of origin:
DE
Weight:
101 g
Design:
Threaded barrel
Construction size:
M18 x 1
Rated switching distance:
8 mm
Mounting:
Non-flush
Operating voltage:
20…250 VAC / 10…300 VDC
Output function:
NC contact, 2-wire
Switching frequency:
0.020 kHz
Electrical connection:
Cable
Cable length (L):
2.0 m
Housing material:
Plastic, PA12-GF30
Ambient temperature:
-25…+70 °C
Protection class:
IP67
$149.80

Description

Inductive Sensor, Threaded barrel, M18 x 1, Plastic, PA12GF30, AC 2-wire, 20250 VDC, DC 2-wire, 10300 VDC, NC contact, Cable connection, Cable length (L) 2ÿm, Rated switching distance: 8 mm, Non-flush
