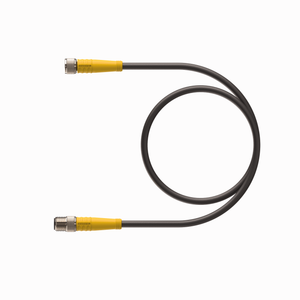

Turck Pkg 3M-0.3-Psg 3M/S90 Cordsets U2515-64
Turck
$29.10
Manufacturer's Part Number: U2515-64
Actuator and Sensor Cable. Extension Cable. Ident. no.: U2515-64. M8, Female, Straight, 3-pin. Threaded connector. M8, Male, Straight, 3-pin. Threaded Connector. General Purpose Cable. TPU jacket, Black, 3X24 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M8 ?ù 1, Straight
- Connector B:
- Male, M8 ?ù 1, Straight
- Voltage:
- 125 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 4.19 mm
- Length (L):
- 0.30 m
- Cable jacket:
- TPU, Black
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
