Manufacturer's Part Number: U2134-3

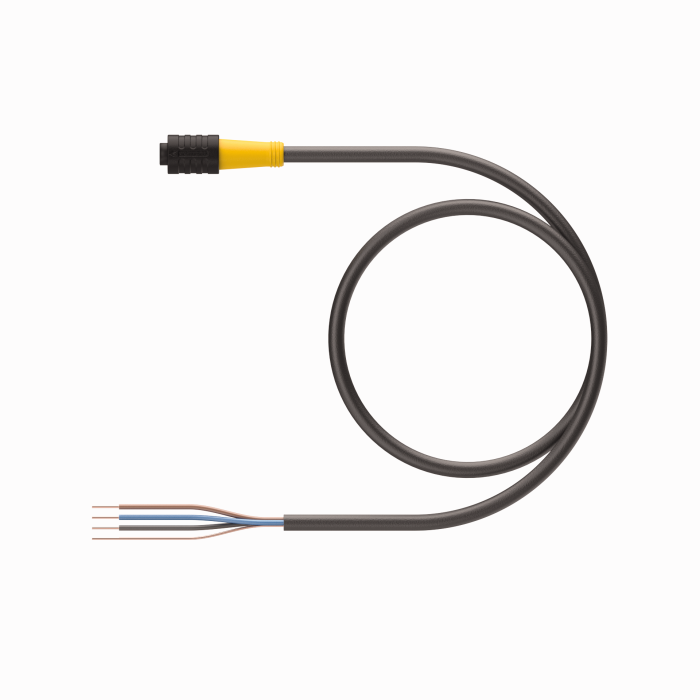

Actuator and Sensor Cable. Connection Cable. Ident. no.: U2134-3. M8, Female, Straight, 3-pin. Snap-on Connector with Sleeve Lock. General Purpose Cable. Black TPU jacket, shielded, 3X24 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M8 - ?ÿ 8 mm (snap), Straight
- Number of contacts:
- 3
- Connector body:
- Plastic, TPU, Yellow
- Voltage:
- 125 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 4.19 mm
- Length (L):
- 6.0 m
- Cable jacket:
- TPU, Black
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
