Turck Pkg 4Z-6 Cordsets U0070-01
Turck
$32.70
Manufacturer's Part Number: U0070-01

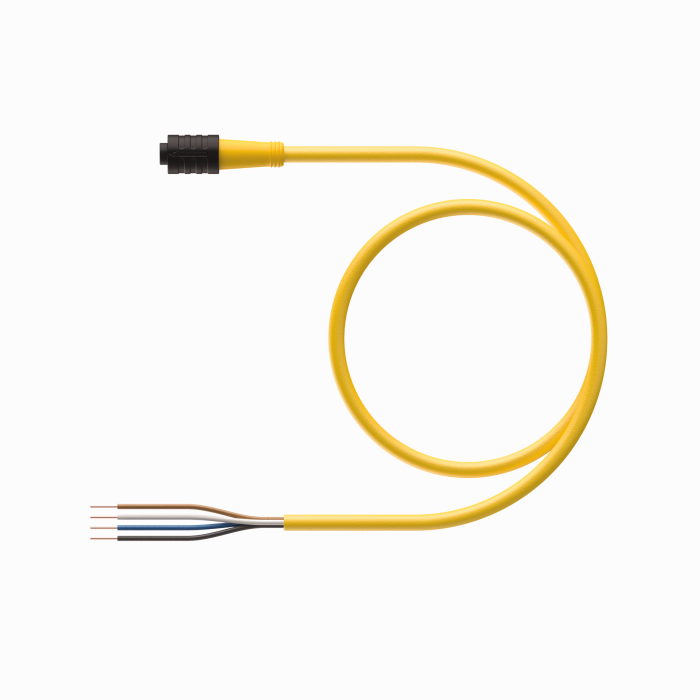

Actuator and Sensor Cable. Connection Cable. Ident. no.: U0070-01. M8, Female, Straight, 4-pin. Snap-on Connector with Sleeve Lock. General Purpose Cable. Yellow PVC jacket, 4X26 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M8 - ?ÿ 8 mm (snap), Straight
- Number of contacts:
- 4
- Connector body:
- Plastic, TPU, Yellow
- Voltage:
- 125 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 4.39 mm
- Length (L):
- 6.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67
- Special Features:
- High Flex/C-track cable
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
