Manufacturer's Part Number: U-60854

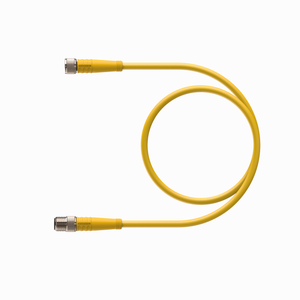

Actuator and Sensor Cable. Extension Cable. Ident. no.: U-60854. M8, Female, Straight, 6-pin. Threaded connector. M8, Male, Straight, 6-pin. Threaded Connector. General Purpose Cable. Yellow PVC jacket, 6X26 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M8 ?ù 1, Straight
- Connector B:
- Male, M8 ?ù 1, Straight
- Voltage:
- 125 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 4.5 mm
- Length (L):
- 20.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 6
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
