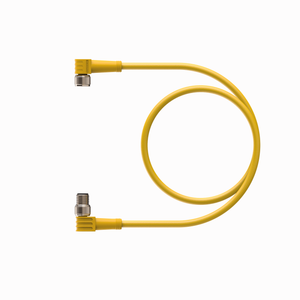

Actuator and Sensor Cable. Extension Cable. Ident. no.: U2-04812. M8, Female, Right-angle, 4-pin. Threaded Connector. M8, Male, Right-angle, 4-pin. Threaded Connector. General Purpose Cable. Yellow PVC jacket, 4X26 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M8 ?ù 1, Right angle
- Connector B:
- Male, M8 ?ù 1, Right angle
- Voltage:
- 125 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 4.39 mm
- Length (L):
- 1.50 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67
- Special Features:
- High Flex/C-track cable
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
