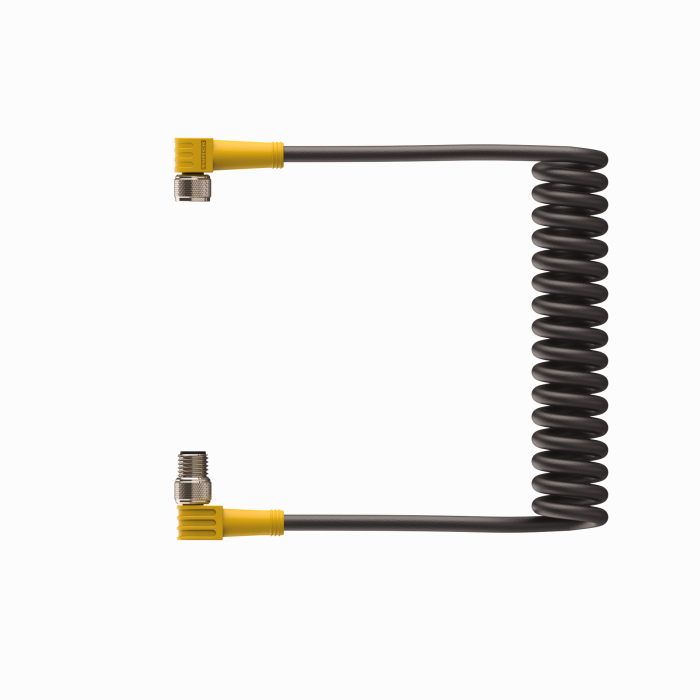

Turck Pkw 4M-3-Psw 4M/S90-Sp Cordsets U99-11116
Turck
$62.30
Manufacturer's Part Number: U99-11116
Actuator and Sensor Cable. Extension Coil Cordset. Ident. no.: U99-11116. M8, Female, Right-angle, 4-pin. Threaded Connector. M8, Male, Right-angle, 4-pin. Threaded Connector. General Purpose Cable. TPU jacket, Black, 4X26 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M8 ?ù 1, Right angle
- Connector B:
- Male, M8 ?ù 1, Right angle
- Voltage:
- 125 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 4.19 mm
- Length (L):
- 3.0 m
- Cable jacket:
- TPU, Black
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
