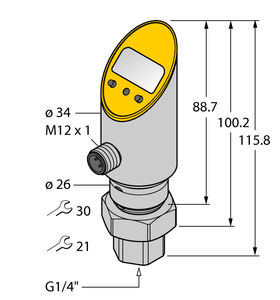

Turck Ps001V-501-2Upn8X-H1141 Pressure 6832626
Turck
$593.10
Manufacturer's Part Number: 6832626
Pressure Transmitter (Rotatable). 2 PNP/NPN Transistor Switching Outputs. Ident. no.: 6832626. Housing is rotatable after plugging the process connection. Reading of adjusted values without tool. Recessed pushbutton and keylock for secure programming. Permanent indication of pressure (bar, psi, kPa, MPa, misc). Peak pressure memory. Pressure range -1
1 bar rel.
- Design:
- With display
- Process connection:
- G 1/4'' female thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- -1 1 bar
- Pressure range psi:
- -14.5 14.5 psi
- Operating voltage:
- 18 30 VDC
- Electrical output:
- 2 × switching output
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4305 (AISI 303)
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40 +85 °C
- Ambient temperature:
- -40 +80 °C
- Protection class:
- IP67/IP69K
- Approvals:
- CE, Metrological certification (RUS), cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
