Turck Ps100R-503-2Upn8X-H1141 Pressure 6832666
Turck
$613.70
Manufacturer's Part Number: 6832666

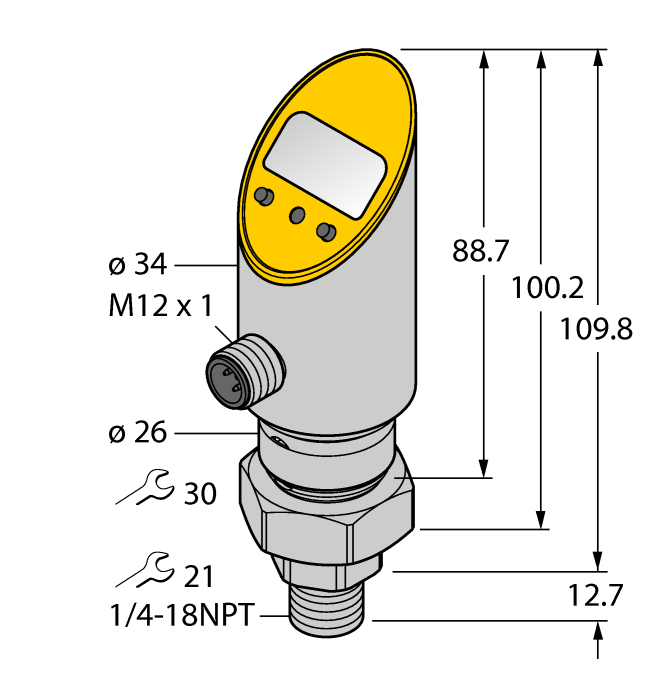

Pressure Transmitter (Rotatable). 2 PNP/NPN Transistor Switching Outputs. Ident. no.: 6832666. Housing is rotatable after plugging the process connection. Reading of adjusted values without tool. Recessed pushbutton and keylock for secure programming. Permanent indication of pressure (bar, psi, kPa, MPa, misc). Peak pressure memory. Pressure range 0
100 bar rel.
- Design:
- With display
- Process connection:
- 1/4 NPT-18 male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0?à100 bar
- Pressure range psi:
- 0?à1450.38 psi
- Operating voltage:
- 18?à30 VDC
- Electrical output:
- 2 ?ù switching output
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4305 (AISI 303)
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40?à+85 ??C
- Ambient temperature:
- -40?à+80 ??C
- Protection class:
- IP67/IP69K
- Approvals:
- CE, Metrological certification (RUS), cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
