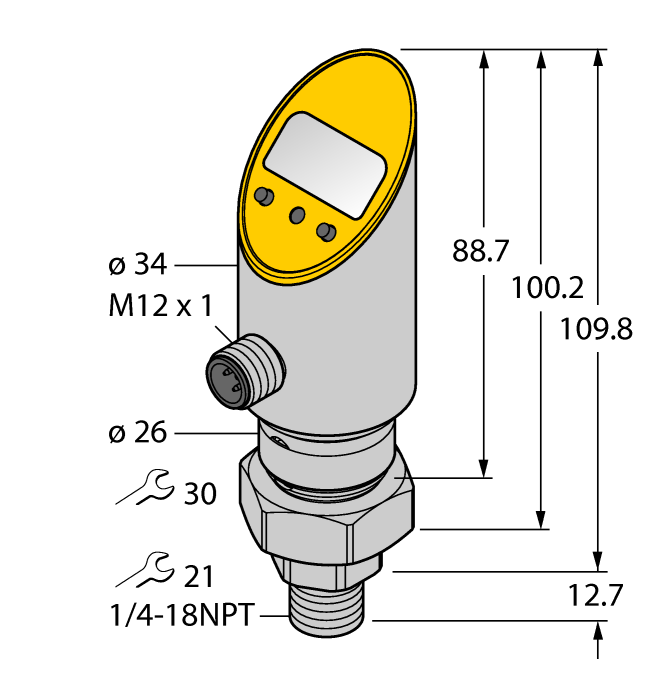

Turck Ps100R-503-Luupn8X-H1141 Pressure 6832297
Turck
$689.40
Manufacturer's Part Number: 6832297
Pressure Transmitter (Rotatable). With Voltage Output and PNP/NPN Transistor Switching Output . Ident. no.: 6832297. Housing is rotatable after plugging the process connection. Reading of adjusted values without tool. Recessed pushbutton and keylock for secure programming. Permanent indication of pressure (bar, psi, kPa, MPa, misc). Peak pressure memory. Pressure range 0
100 bar rel.
- Design:
- With display
- Process connection:
- 1/4 NPT-18 male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0?à100 bar
- Pressure range psi:
- 0?à1450.38 psi
- Operating voltage:
- 18?à30 VDC
- Electrical output:
- Voltage output (3-wire), 1 ?ù switching output
- Voltage output:
- 0?à10 V
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4305 (AISI 303)
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40?à+85 ??C
- Ambient temperature:
- -40?à+80 ??C
- Protection class:
- IP67/IP69K
- Approvals:
- CE, Metrological certification (RUS), cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
