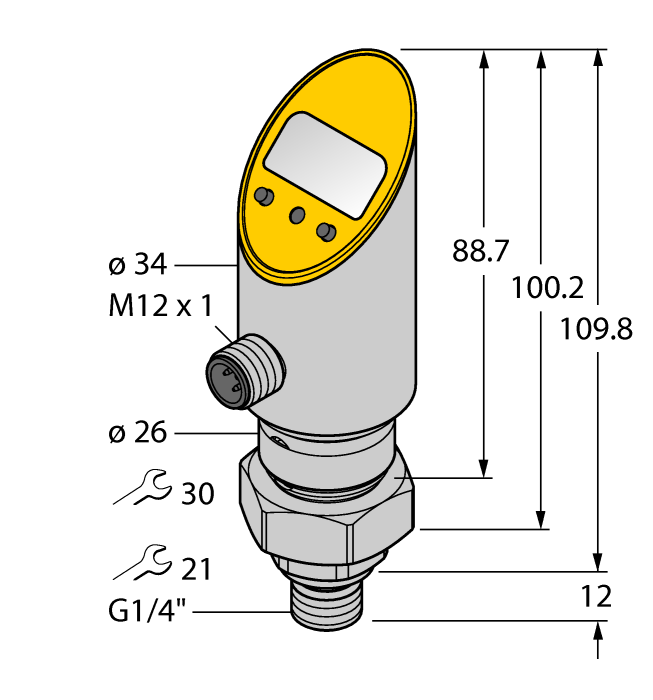

Turck Ps250R-504-Li2Upn8X-H1141 Pressure 6832308
Turck
$666.20
Manufacturer's Part Number: 6832308
Pressure Sensor (Rotatable). With Analog Output and PNP/NPN Transistor Switching Output. Output 2 Reprogrammable as Switching Output . Ident. no.: 6832308. Housing is rotatable after plugging the process connection. Reading of adjusted values without tool. Recessed pushbutton and keylock for secure programming. Permanent indication of pressure (bar, psi, kPa, MPa, misc). Peak pressure memory. Pressure range 0
250 bar rel.
- Design:
- With display
- Process connection:
- G 1/4'' male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0 250 bar
- Pressure range psi:
- 0 3625.94 psi
- Operating voltage:
- 18 30 VDC
- Electrical output:
- Current output (3-wire), 2 × switching output
- Voltage output:
- 0 10 V
- Current output:
- 4 20 mA
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4305 (AISI 303)
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40 +85 °C
- Ambient temperature:
- -40 +80 °C
- Protection class:
- IP67/IP69K
- Approvals:
- CE, Metrological certification (RUS), cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
