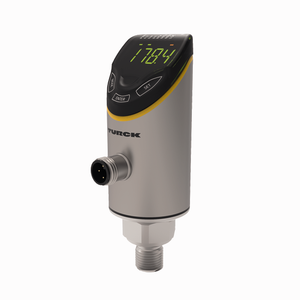

Turck Ps510-100-03-2Upn8-H1141 Pressure 100001718
Turck
$485.80
Manufacturer's Part Number: 100001718
Pressure Sensor. Relative Pressure: 0
100 Bar. Ident. no.: 100001718. 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°. Housing is rotatable after mounting the process connection. Metal measuring cell. Pressure range 0
100 bar relative. 18
33 VDC. NO/NC contact, PNP/NPN output, IO-Link SSP4.1.1. Process connection 1/4 NPT male thread. Connector device, M12 Ã 1
- Design:
- With display
- Process connection:
- 1/4 NPT-18 male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0?à100 bar
- Pressure range psi:
- 0?à1450.38 psi
- Operating voltage:
- 18?à33 VDC
- Electrical output:
- 2 ?ù switching output, IO-Link
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV
- Materials (contact with media):
- Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)
- Medium temperature:
- -40?à+80 ??C
- Ambient temperature:
- -40?à+80 ??C
- Protection class:
- IP66/IP67/IP69K
- Approvals:
- CE, Metrological certification (RUS), cULus
