Turck

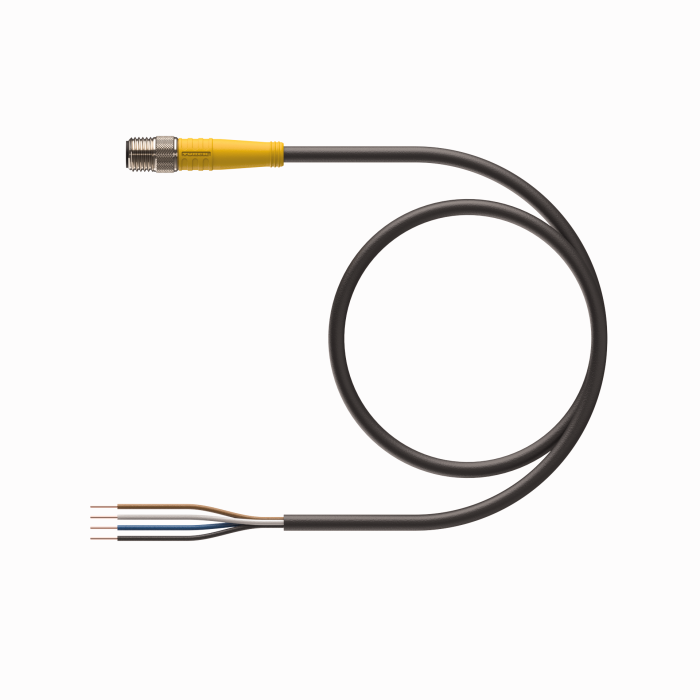

Turck Psg 4M-0.5/S90 Cordsets U0877-81

(No reviews yet) Write a Review
SKU:
PSG 4M-0.5/S90
MPN:
U0877-81
Condition:
New
Application:
Signal
Design:
Single-ended
Connector A:
Male, M8 ?ù 1, Straight
Number of contacts:
4
Connector body:
Plastic, TPU, Yellow
Coupling nut:
Brass, CuZn, Nickel-plated
Voltage:
125 V
Current:
2 A
Cable diameter:
?ÿ 4.19 mm
Length (L):
0.50 m
Cable jacket:
TPU, Black
Number of Conductors:
4
Protection class (When coupled):
IP68
Approvals:
UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
Flyer:
View
Catalog:
View
Datasheet:
View
  • Turck Psg 4M-0.5/S90 Cordsets U0877-81
  • Turck Psg 4M-0.5/S90 Single-ended Cordset, Straight Male Connector
$24.70

Description

Actuator and Sensor Cable. Connection Cable. Ident. no.: U0877-81. M8, Male, Straight, 4-pin. Threaded Connector. General Purpose Cable. TPU jacket, Black, 4X26 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
