Turck Pt003R-13-Lu2-H1131 Pressure 6831515
Turck
$342.40
Manufacturer's Part Number: 6831515
Pressure Transmitter. With Voltage Output (3-Wire). Ident. no.: 6831515. Compact and robust design. Pressure connection with integrated peak pressure aperture. Accuracy hardly affected by temperature within entire range 40
+125°C. Excellent EMC properties. Pressure range 0
2.5 bar rel.
- Design:
- Without display
- Process connection:
- 1/4 NPT-18 male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0 2.5 bar
- Pressure range psi:
- 0 36.26 psi
- Operating voltage:
- 11.4 33 VDC
- Electrical output:
- Voltage output (3-wire)
- Voltage output:
- 0 10 V

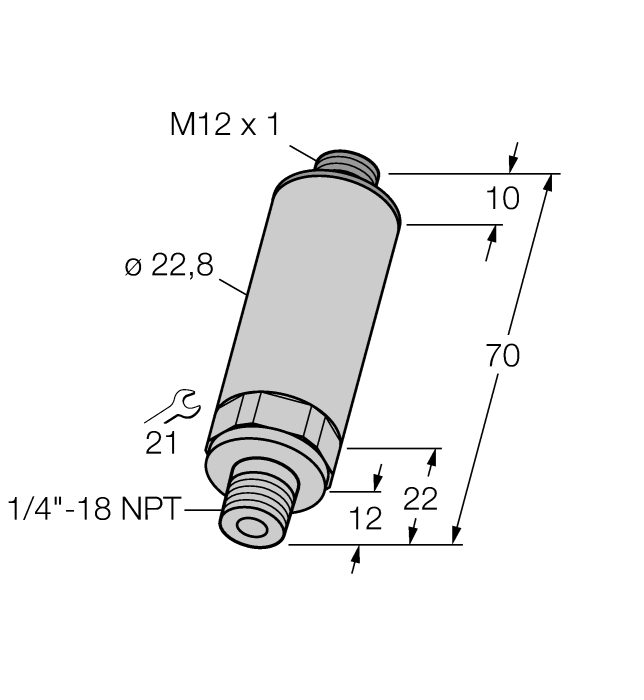

- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4305 (AISI 303)
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40 +125 °C
- Ambient temperature:
- -40 +85 °C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
