Manufacturer's Part Number: 6836012
Pressure Transmitter. With Voltage Output (3-Wire). Ident. no.: 6836012. Ceramic measuring cell. Compact and robust design. Excellent EMC properties. Pressure range -1
0 bar rel.. 12
33 VDC. Analog output 0

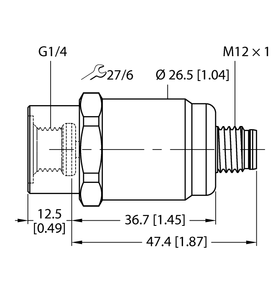

10 V. Process connection G1/4" female thread, front sealing. Connector device, M12 Ã 1
- Design:
- Without display
- Process connection:
- G 1/4 female thread (front sealing)
- Pressure type:
- Relative pressure
- Pressure range bar:
- -1 0 bar
- Pressure range psi:
- -14.5 0 psi
- Operating voltage:
- 12 33 VDC
- Electrical output:
- Voltage output (3-wire)
- Voltage output:
- 0 10 V
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40 +125 °C
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP67
- Approvals:
- CE, Metrological certification (RUS), cULus
