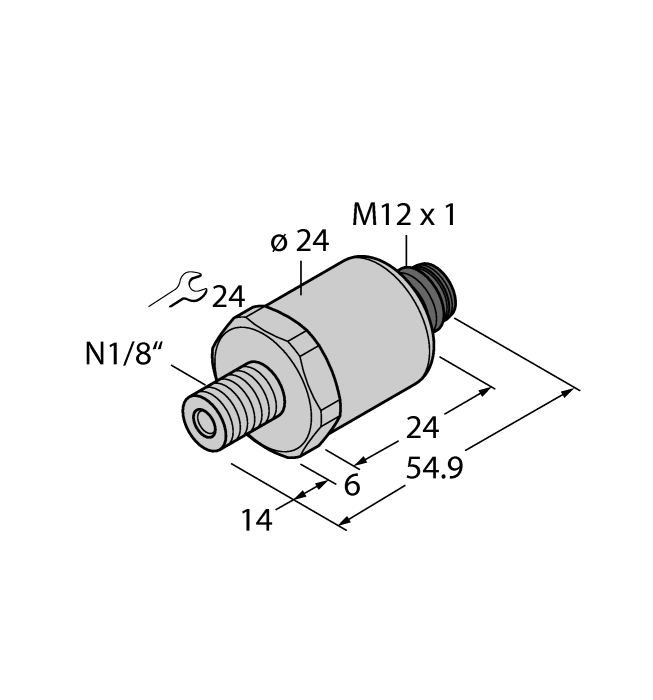

Turck Pt500Psig-2014-U6-H1141 Pressure 100000500
Turck
$194.70
Manufacturer's Part Number: 100000500
Pressure Transmitter. Ratiometric Output (3-Wire). Ident. no.: 100000500. Fully welded metal measuring cell. Pressure range 0
500 psi rel.. 5 VDC ± 10 %. Ratiometric output 10
90 %. Process connection 1/8"-27 NPT male thread. Plug-in device, M12 Ã 1
- Design:
- Without display
- Process connection:
- 1/8-27 NPT male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0 34.47 bar
- Pressure range psi:
- 0 500 psi
- Operating voltage:
- 4.5 5.5 VDC
- Electrical output:
- Voltage output (3-wire)
- Voltage output:
- 0.5 4.5 V
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Material pressure transducer:
- Stainless steel 1.4016 (AISI 430)
- Medium temperature:
- -40 +135 °C
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP67
- Approvals:
- CE, Metrological certification (RUS), cULus
